Home > Products > Soundproof Diesel Generator > Soundproof Yuchai Diesel Generator > Yuchai Soundproof Diesel Generator with Fuel Tank

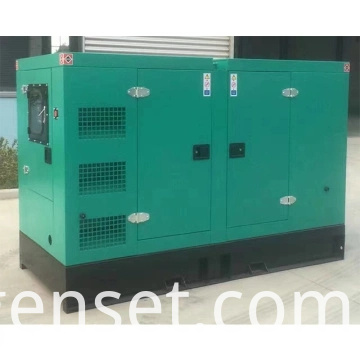

Yuchai Soundproof Diesel Generator with Fuel Tank
  • Yuchai Soundproof Diesel Generator with Fuel Tank

Yuchai Soundproof Diesel Generator with Fuel Tank

    Payment Type: L/C,T/T
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 1 Days

Basic Info

Model No.: Soundproof with Fuel Tank-50GF

Additional Info

Packaging: wooden box

Productivity: 5000-8000

Brand: Kehong\Lingyu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou Jiangsu

Supply Ability: 5000-8000

Certificate: IS09001-2000\ISO14000

HS Code: 85016100

Port: SHANGHAI,TIANJING

Product Description

Basic Info
Model No.: SMYC-50GF (Soundproof with Fuel Tank)Type: Basic Diesel GeneratorInstallation Method: FixedStroke: Four StrokeCooling Method: Water CoolingOutput Type: AC Three PhaseSpeed: HSSConditions of Use: Land UseUsage: Common UnitsLanduse Type of Unit: Automation TypeExcitation Mode: Static Exciter
Additional Info
Packaging: Plastic Film, Wooden CaseProductivity: 2000 Set/YearBrand: SUANMATransportation: Ocean,Land,AirPlace of Origin: Yangzhou, JiangsuSupply Ability: 300 Set/MonthCertificate: ISO9001, CEHS Code: 8502120000Port: Shanghai,Ningbo,Qingdao
Product Description
Yuchai series Diesel Generator Set with 40 years of history, the products are widely used in military, civil, marine and other fields.Digital control system, highly intelligent; can be provided according to the different needs of users for remote computer remote control, group control, telemetry, automatic and cars, different functions such as automatic fault protection products.
We are a Diesel Generator Manufacturer. We have been Engaged In the Production and Research and Development of Soundproof Diesel Generators with Fuel Tank for 20 years. Soundproof Generator Power (with Fuel Tank) is 10KW-800KW.Power Generator, Generator, Silent Diesel Generator,Diesel Generator,Natural Gas Generator,Diesel Genset

Genset Model:SMYC-50GF(Soundproof with Fuel Tank)
Output Type:AC Three Phase
Rated Power:50KW/62.5kva
Standby Power:55KW/68.75KVA
Rated Voltage:400/230V
Rated Current:90A
Frequency:50HZ
Speed:1500 rpm
Power factor:0.8
Soundproof Type Dimension(mm): 2200*1000*1560
Weight(kg):1360

Engine Brand:YUCHAI
Engine Model: YC4D85Z-D20
Configuration:4-Cycle;In-line,4-Cylinder
Displacement (L):4.2
Bore x Stroke(mm):105 * 125
Compression Ratio:16.7:1
Lubricating oil capacity(L):13
Fuel Consumption:230 g/kw.h
Cooling System:Water-cooled
Output Power(Kw):50
Starter Motor :DC24V

Model:SMI-50
Phase:3
Wiring:Three-phase four-wire, Y-type connection
Protection Grade:IP23
Exciter type:Brushless self-excitation
Insulation Grade:H
Voltage Adjust range:≤±5%
Alternator efficiency:96.8%

Controller: Smartgen HGM6110N
Support for English language displaypanel over-current protection, overload protection, low oil pressure protection, high water temperature protection, under-frequency protection and other full-range real-time monitoring unit running

Warranty:12 Months/One year
Certificate:ISO9001:2008 CE
The stability of the output voltage:±1.5%
Output frequency stability:±1.0%
Operating life before overhaul :30000
Number of batteries :2
Battery capacity :80Ah

Standard configuration:
1.The generator sets include: engine (diesel filter, air filter, oil filter, self-charging system), radiator, generator, MCCB, unit control panel (with self-starting self-protection LCD) Public base, shock absorber, bellows, muffler, fuel tank,Soudproof Canopy,engine heater,the above pieces are equipped with diesel Generator Set.
2.Accessories: battery, battery cable, random spare parts and toolbox .

3.Random technical documents: User manual (original technical documents of diesel engine and generator, installation manual, generator set manual, etc.)

Yuchai Soundproof Diesel Generator with Fuel Tank


Looking for ideal Yuchai Soundproof Diesel Generator Fuel Tank Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Soundproof Diesel Generator Fuel Tank are quality guaranteed. We are China Origin Factory of Soundproof Diesel Generator Yuchai. If you have any question, please feel free to contact us.

Product Categories : Soundproof Diesel Generator > Soundproof Yuchai Diesel Generator
