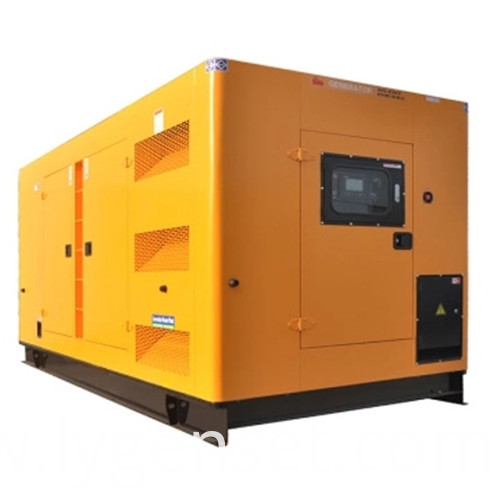

1000kva Silent Diesel Generator
1000kva Silent Diesel Generator
1000kva Silent Diesel Generator
  • 1000kva Silent Diesel Generator
  • 1000kva Silent Diesel Generator
  • 1000kva Silent Diesel Generator

1000kva Silent Diesel Generator

    Payment Type: L/C,T/T
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 1 Days

Basic Info

Model No.: SMPKS-800GF

Additional Info

Packaging: wooden box

Productivity: 5000-8000

Brand: Kehong\Lingyu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou Jiangsu

Supply Ability: 5000-8000

Certificate: IS09001-2000\ISO14000

HS Code: 85016100

Port: SHANGHAI,TIANJING

Product Description

1000kva Silent Diesel Generator

Basic Info

Model No.: SMPKS-800GFType: Basic Diesel GeneratorInstallation Method: FixedStroke: Four StrokeCooling Method: Water CoolingOutput Type: AC Three PhaseSpeed: HSSConditions of Use: Land UseUsage: Common UnitsLanduse Type of Unit: Automation TypeExcitation Mode: Static Exciter
Additional Info
Packaging: Plastic Film, Wooden CaseProductivity: 2000 Set/YearBrand: SUANMATransportation: Ocean,Land,AirPlace of Origin: Yangzhou, JiangsuSupply Ability: 300 Set/MonthCertificate: ISO9001 CEHS Code: 8502120000Port: Shanghai,Ningbo,Qingdao
Product Description
Power Generator, Generator , Silent Diesel Generator,Diesel Generator,Natural Gas Generator, Diesel Genset .The Genset Model of 800kw Silent Electric Generator is SMPKS-800GF (Super Silent). The Prime/Standby Power of Silent Generator Power is 800KW/880KW. Aspiration of 1000kva Enclosed Generator is Turbocharged & Inter-cooling. 600kw Genset Diesel Output Max. Current is 1440A.

Genset Model:SMPKS-800GF (Super Silent)
Output Type:AC Three Phase
Brand Name:SUANMA power
Rated Power:800KW/1000kva
Standby Power:880KW/1100KVA
Rated Voltage:400/230V
Rated Current:1440A
Frequency:50HZ
Speed:1500 rpm
Power factor:0.8
Silent Type Dimension(mm):6000x2600x2800
Weight(kg):10700

Engine Brand:PERKINS
Engine Model: 4008TAG2A
Configuration:4-Cycle;In-line,8-Cylinder
Displacement (L):30.6
Bore x Stroke(mm):160x190
Compression Ratio:13.6:1
Lubricating oil capacity(L):153
Fuel Consumption: 202g/kw.h
Cooling System:Water-cooled
Output Power(Kw):800
Starter Motor :DC24V

Alternator:SUANMA (Stamford Technology)
Model:SMI-800
Phase:3
Wiring:Three-phase four-wire, Y-type connection
Protection Grade:IP23
Exciter type:Brushless self-excitation
Insulation Grade:H
Voltage Adjust range:≤±5%
Alternator efficiency:96.8%

Controller: Smartgen HGM6110N
Support for English language displaypanel over-current protection, overload protection, low oil pressure protection, high water temperature protection, under-frequency protection and other full-range real-time monitoring unit running

Warranty:12 Months/One year
Certificate:ISO9001:2008 CE
The stability of the output voltage:±1.5%
Output frequency stability:±1.0%
Operating life before overhaul :30000
Number of batteries :2
Battery capacity :80Ah

Standard configuration:
1.The generator sets include: engine (diesel filter, air filter, oil filter, self-charging system), radiator, generator, MCCB, unit control panel (with self-starting self-protection LCD) Public base, shock absorber, bellows, muffler, fuel tank,Soudproof Canopy,engine heater,the above pieces are equipped with Diesel Generator Set.
2.Accessories: battery, battery cable, random spare parts and toolbox .
3.Random technical documents: User manual (original technical documents of diesel engine and generator, installation manual, Generator Set manual, etc.)

Optional:
ATS
PMG
Trailer
Soundproof Canopy
1000kva Silent Diesel Generator

Looking for ideal Silent Diesel Generator Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Silent Diesel Generator 1000Kva are quality guaranteed. We are China Origin Factory of Diesel Generator 1000kva. If you have any question, please feel free to contact us.
