Brushless 180kw Power Generator
Brushless 180kw Power Generator
Brushless 180kw Power Generator
Brushless 180kw Power Generator
Brushless 180kw Power Generator
  • Brushless 180kw Power Generator
  • Brushless 180kw Power Generator
  • Brushless 180kw Power Generator
  • Brushless 180kw Power Generator
  • Brushless 180kw Power Generator

Brushless 180kw Power Generator

    Payment Type: L/C,T/T
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 1 Days

Basic Info

Model No.: SMYC-180GF

Additional Info

Packaging: wooden box

Productivity: 5000-8000

Brand: Kehong\Lingyu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou Jiangsu

Supply Ability: 5000-8000

Certificate: IS09001-2000\ISO14000

HS Code: 85016100

Port: SHANGHAI,TIANJING

Product Description

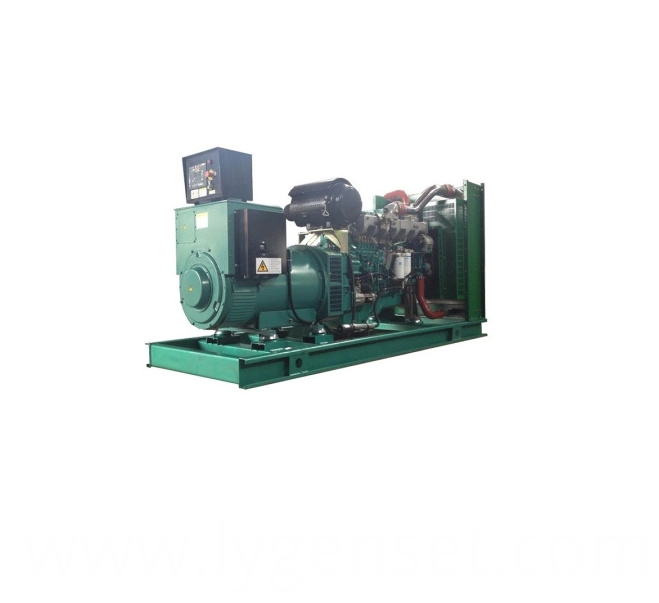

Brushless 180kw Power Generator

Basic Info

Model No.: SMYC-180GFType: Basic Diesel GeneratorInstallation Method: FixedStroke: Four StrokeCooling Method: Water CoolingOutput Type: AC Three PhaseSpeed: HSSConditions of Use: Land UseUsage: Common UnitsLanduse Type of Unit: Automation TypeExcitation Mode: Static Exciter
Additional Info
Packaging: Plastic Film, Wooden CaseProductivity: 2000 Set/YearBrand: SUANMATransportation: Ocean,Land,AirPlace of Origin: Yangzhou, JiangsuSupply Ability: 300 Set/MonthCertificate: ISO9001, CEHS Code: 8502120000Port: Shanghai,Ningbo,Qingdao
Product Description
Power Generator, Generator, Silent Diesel Generator,Diesel Generator,Natural Gas Generator,Diesel Genset.Yuchai Diesel Generator Have Digital control system, highly intelligent; Low emissions, in line with national environmental requirements;can be provided according to the different needs of users for remote computer remote control, group control, telemetry, automatic and cars, different functions such as automatic fault protection products.We are a Diesel Generator Manufacturer. We have been Engaged In the Production and Research and Development of Yuchai Diesel Generators for 20 years. Yuchai Generator Power is 16KW-2400KW.

Genset Model:SMYC-180GF
Output Type:AC Three Phase
Brand Name:SUANMA power
Rated Power:180KW/225kva
Standby Power:198KW/247.5KVA
Rated Voltage:400/230V
Rated Current:324A
Frequency:50HZ
Speed:1500 rpm
Power factor:0.8
Open Type Dimension(mm): 2650*1020*1500
Weight(kg):1950

Engine Brand:YUCHAI
Engine Model: YC6A275-D30
Configuration:4-Cycle;In-line,6-Cylinder
Displacement (L): 7.3
Bore x Stroke(mm): 108*132
Compression Ratio:17.5:1
Lubricating oil capacity(L):22
Fuel Consumption:209g/kw.h
Cooling System:Water-cooled
Output Power(Kw):180
Starter Motor :DC24V

Alternator:SUANMA (Stamford Technology)
Model:SMI-180
Phase:3
Wiring:Three-phase four-wire, Y-type connection
Protection Grade:IP23
Exciter type:Brushless self-excitation
Insulation Grade:H
Voltage Adjust range:≤±5%
Alternator efficiency:96.8%

Controller: Smartgen HGM6110N
Support for English language displaypanel over-current protection, overload protection, low oil pressure protection, high water temperature protection, under-frequency protection and other full-range real-time monitoring unit running

Warranty:12 Months/One year
Certificate:ISO9001:2008 CE
The stability of the output voltage:±1.5%
Output frequency stability:±1.0%
Operating life before overhaul :30000
Number of batteries :2
Battery capacity :80Ah

Standard configuration:
1.The generator sets include: engine (diesel filter, air filter, oil filter, self-charging system), radiator, generator, MCCB, unit control panel (with self-starting self-protection LCD) Public base, shock absorber, bellows, muffler, fuel tank,Soudproof Canopy,engine heater,the above pieces are equipped with Diesel Generator Set.
2.Accessories: battery, battery cable, random spare parts and toolbox .
3.Random technical documents: User manual (original technical documents of diesel engine and generator, installation manual, Generator Set manual, etc.)

Optional:
ATS
PMG
Trailer
Soundproof Canopy
Brushless 180kw Power Generator

Looking for ideal Brushless Power Generator 2019 Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Brushless Power Generator 180Kw are quality guaranteed. We are China Origin Factory of 180kw Brushless Power Generator. If you have any question, please feel free to contact us.
